Electrical Vacuum Pump

Position:Home > Catalogue > Automotive Chasis Parts(AFT MKT) > Electrical Vacuum Pump

No.	Product Name	Product Image	OEM No.	HBS No.	Car Model	Description

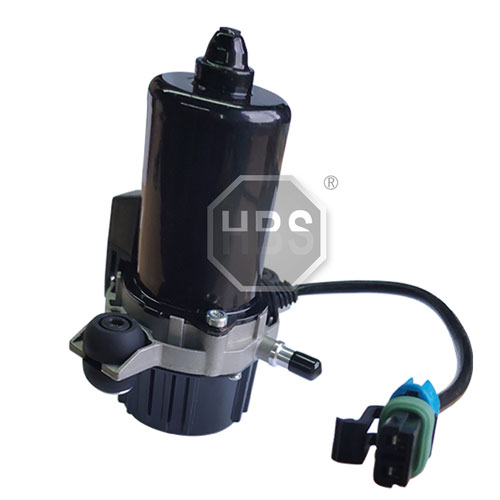

1	Brake Electrical Vacuum Pump		Hella Part#UP30	HBS-EVP002(HB)	Diesel engine Electrical/ hybrid,fuel cell vehicles	• Rated voltage: DC12V • Working voltage: 9-16V • Rated current: ≤10A • Rated Turning speed: 5500 cycles • Output Torque:  0.5N.m
2	Brake Electrical Vacuum Pump		Hella Type EVP Part#UP28	HBS-EVP001	Diesel engine Electrical/ hybrid,fuel cell vehicles	Working Temperature: -40 to120°C Rated voltage: DC12V Rated current: ≤10A Max vacuum pressure(%): ＞86% Noise: ＜70dBA

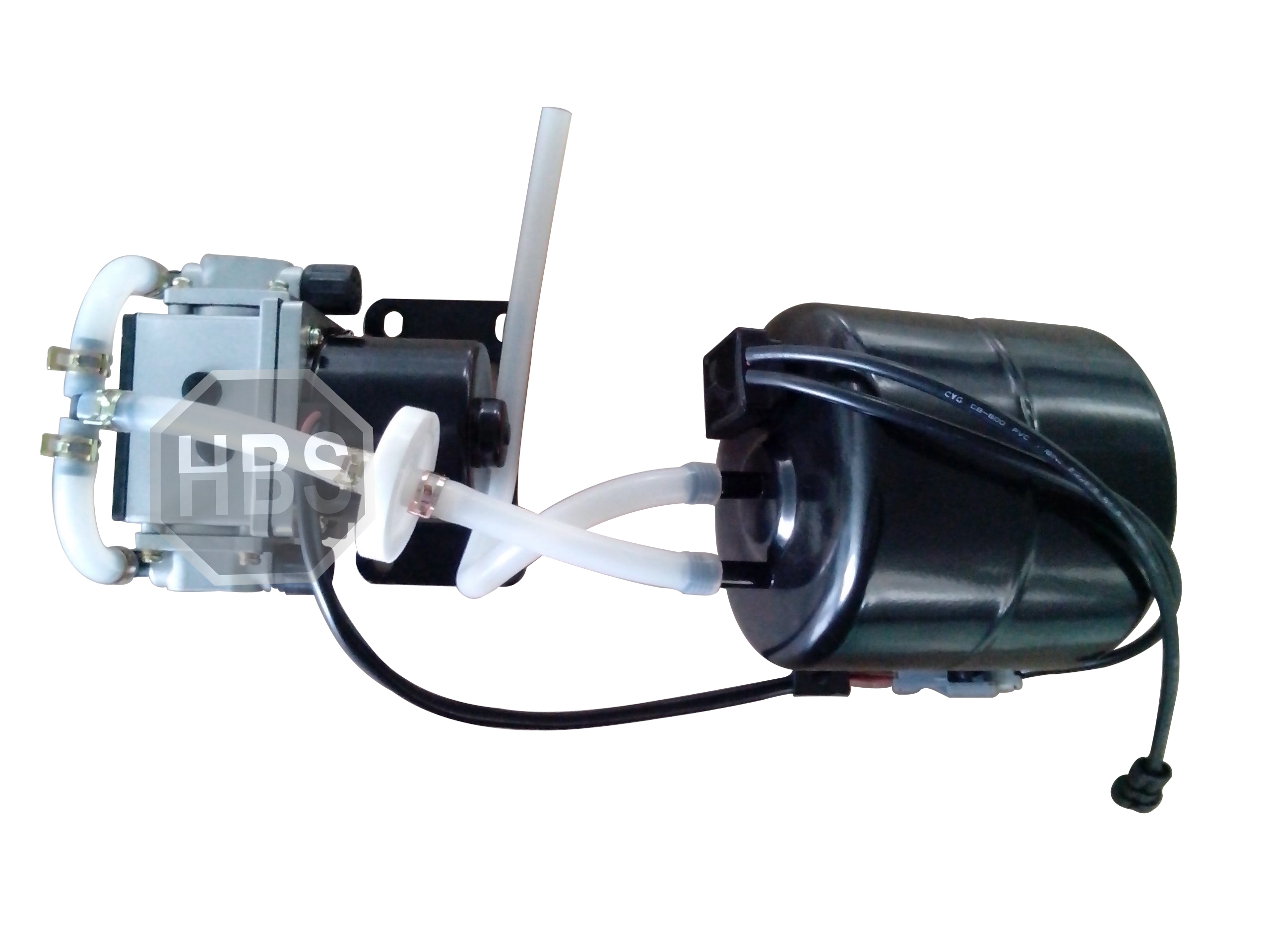

3	Brake Electrical Vacuum Pump with plunger type		N/A	HBS-EVP003(HB)	Diesel engine Electrical/ hybrid,fuel cell vehicles	•Rated voltage: DC12V • Working voltage range: 9-16V • Rated current: ≤4A • Rated turning speed: 1450 R/min • Output Torque: 0.12 N.m • Noise: ≤55dB(A)
4	Brake Electrical Vacuum Pump with diaphragm type		N/A	HBS-EVP004(HB)	Diesel engine Electrical/ hybrid,fuel cell vehicles	•Rated voltage: DC12V •Rated current: ≤ 10A •Rated Turning speed: 3000 R/Min • Max turning speed: 3500 (r/min) •OutPut torque: 0.3N.m
5	Brake Electrical Vacuum Pump		Hella Type EVP Part# UP32	HBS-EVP005	Diesel engine Electrical/ hybrid,fuel cell vehicles	Working Temperature:-40 to120°C Working way: ≤ 60SECs/ea Max Vacuum: ≥86% Noise: ≤70dB Working Current: ≤14A Vacuum Sucking: To -50Kpa≤2S; To -70Kpa≤4S; To -80Kpa≤6S Working Life: ≥500 thousand
